30x30 mm X Motor Mount

30x30 mm X Motor Mount
Part # 30x30 X Mount
Availability: Out Of Stock
Price: $13.95
   - OR -
1 reviews  1 reviews  |  Please Login To Review This Product

30x30 mm X Motor Mount 30x30 mm X Motor Mount

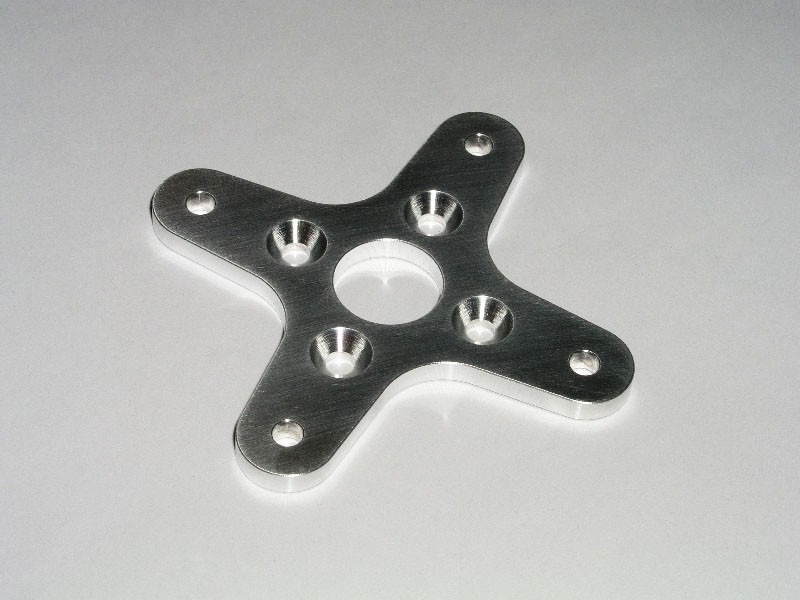

These 30x30mm X -mounts are CNC machined from billet aluminum. They are much stronger than the original cast or stamped aluminum mounts that typically come with the motors. This new design also adds extra material around the countersunk holes where the motor attaches. An area known for cracking. Simply compare these with the 'much thinner' standard mounts and you will quickly see the difference in strength and quality.

Don't take any chances with your high end motor and valuable planes. With these new style X mounts you can fly with confidence.

Two step installation:

  1. Attach new motor to aluminum mount with the motors original screws. (Accepts 4mm flat head screws)
  2. Attach entire assembly to the planes firewall

Included: 1 -  CNC Machined 30x30 mm Aluminum 'X' Motor Mount

Weight: 19g

Outer Hole Dimensions:  62mm (center to center)
Center Hole: 15.9mm diameter
Thickness:  4mm

Compatible Motors

There is a large selection of motors.  Here are a few options.

  • Turnigy 50xx series
  • AXI 4120 / 4130 series
  • E-flite Power 32/42/60 series
  • Scorpion HK 42/45 series
  • Others with bolt patterns shown below

Acceptable bolt patterns (units in mm):

  • 30x30

Please contact us with any questions on motor compatibility.
